OFNR Optical Fiber Patch Cable SN to SN 2 Fiber Duplex Patch cord

Brand Name : OEM

Model Number : SN/UPC-SN/UPC-2F-A2-2.0-R-3M

Certification : ISO9001

Place of Origin : CHINA

MOQ : Support sample order

Price : Negotiation

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000,000 connectors/month

Delivery Time : 3-7 work days

Packaging Details : Individual packaging with Ziplock Bag

Duplex Patchcord Fiber Type : G657A2

Single mode Jumper Sheath Material : OFNR

Fiber Count : 2 Fibers

SN Connector Polishing : UPC/APC

Jacket Color : Yellow

Connector Style : SN/UPC

Warranty : 1 year

SN Connector Boot color : White boot

Contact Now

OFNR Optical Fiber Patch Cable SN To SN 2 Fiber Duplex Patch Cord

Optic Fiber Patch Cord SN - SN 2 Fiber Duplex Patchcord OFNR Yellow

Temperature range

Indoor controlled environment: -10℃-+60℃

Cable parameters

Jacket material

OFNR

Cable construction

Round single jacket cable

Outer diameter

1.8mm

Fiber type

SMF OS1; MMF OM3/OM4/OM5 optional

Patchcord Connector parameters

SN SM/MM

Compliance

Telcordia GR-326

Color of housing

Blue (UPC)
Aqua / Magenta / Lime Green

Color of boot

White(T-boot)

Polish

Flat SM (UPC)
Flat MM (PC)

Insertion loss(acc. IEC 61300-3-4 method B)

<0.25dB (@1310/1550nm/@850/1300nm)

Return loss(acc. IEC 61300-3-6)

>50dB(UPC) / >20dB (@1310/1550nm/@850/1300nm)

Identification

traceability label with unique serial number on both ends of cable assembly.

Packaging

Each assembly in sealed PE bag, bulk pack in cardboard box.

Basic characteristics of SN - SN 2-fiber Duplex patch cord
◆ Two fibers connection for SFP-DD and QSFP-DD
◆ With push-pull boot for easy insertion/extraction
◆ Very small form factor duplex connector
◆ Constructed of high-quality fiber optic cable and components
◆ Effective size reduction compared to LC Duplex

SN to SN Fiber Optical Patchcord Applications
◆ 4 x SN in 1 transceiver
◆ Data center
◆ QSFP-DD 400G DR4
◆ Storage Area Network
◆ SN fiber optical patch panel

SN® fiber optical connector has some advantages compared to MPO
• Easy break out/simple network structure
• Easy cleaning/maintenance of the ferrule end face
• Proven stable optical performance

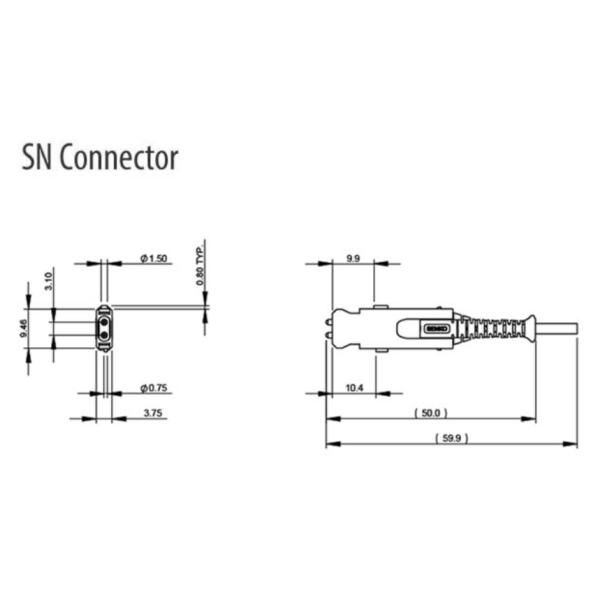

Drawing for SN fiber optical connector
OFNR Optical Fiber Patch Cable SN to SN 2 Fiber Duplex Patch cord
OFNR Optical Fiber Patch Cable SN to SN 2 Fiber Duplex Patch cord
OFNR Optical Fiber Patch Cable SN to SN 2 Fiber Duplex Patch cord
